Custom Plastic Shroud with Hinged Cover

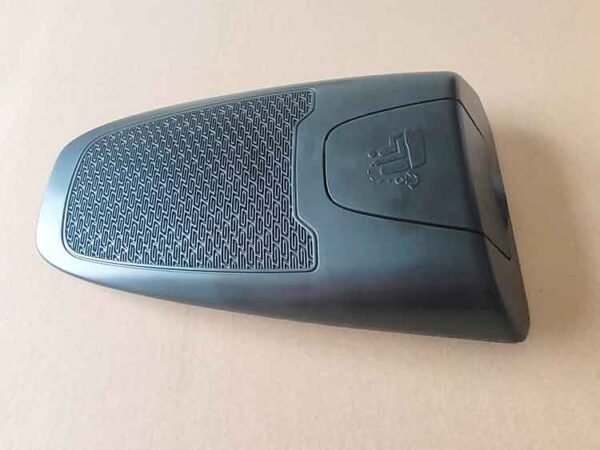

This custom plastic shroud is an automotive Child Seat Anchor Cover. It is a two-piece plastic exterior component with a flip-open hinged cover and a large underside opening, allowing quick access to the anchor point while keeping the area protected and visually clean.
The outer surface features a custom surface pattern inspired by a Greek key pattern (also known as a meander pattern). This raised geometric texture improves tactile feel, adds extra grip during handling, and enhances the overall appearance. A molded child-seat anchor icon on the top provides clear and instant identification.
Product information
| Item | Details |
|---|---|
| Product dimension | 320 × 190 × 120 mm |
| Material | ABS |
| Net Weight | approx. 65 grams |
| Mold (Shroud / Main Body) | 1 cavity, edge gate, cold runner |
| Mold (Flip-Open Cover) | 4 cavities, edge gate, cold runner |
| Key Dimension Tolerance | ±0.2 to ±0.5 mm |
Key Features
Premium Appearance for Automotive Interior Use
As an interior trim component, the part is designed to meet high visual standards:
-
Smooth, even surface with no unintended dents, bumps, or warpage
-
Consistent, uniform color and gloss
-
Clean appearance without visible weld lines, flow lines, black specks, or other surface defects
Custom Greek-Key Inspired Surface Pattern
The geometric pattern is created through tooling engraving: CNC-made electrodes are used for EDM forming to achieve the embossed design.
-
Emboss depth reaches up to 1.5 mm
-
Sharp corners are redesigned with proper radii to ensure durability and mold release
-
Mold venting is carefully arranged to avoid trapped air in fine pattern areas
During molding, parameters are tightly controlled to reduce risks such as sink marks, weld marks, short shot, poor venting burns, warpage, and inconsistent surface finish—especially important for a deep, detailed pattern.
Reliable Snap-Lock Function with Clear Feedback
The hinged cover is designed for simple, repeatable operation:
-
Pull up to open the flip cover
-
Press down to close and snap-lock into place
The closing action is tuned to provide a comfortable operating force and a clear “click” feedback. This is achieved through dimensional control, with critical dimensions held to ±0.2 mm where required.
Professional Injection Molding for Custom Plastic Shrouds
As an experienced injection molding supplier, we deliver custom plastic shrouds with consistent appearance, reliable snap-fit function, and well-controlled surface quality. We support end-to-end service including DFM review, tooling, sampling, and volume production.
